3 5 7 Corrugated Board Production Line Carton Box Manufacturing Plant
Single facer groups include : mill roll stand , 2 ply single facer , cutter, single tile paper machine.
1. Mill Roll Stand
Structural features:
symmetrical structure can be installed at the same time two bundles of paper tube, can be used for non-stop machine to change the paper electric o clamping, release, moving on the left and right brake adjustment using disc plate system. With two-stage automatic expansion of the paper clip, clamp head size 3 inch.
1. Paper stand active model: Mechanical electrical
2. Clamp paper scope : max 1400mm , min 100mm
3. Clamp diameter : max 1400mm
4. Single side max load weight : 1500kgs
5. Power : 380 volt ,50hz
6. Turn over motor power : 1.5kw /set clamp motor power : 0.75kw 4 set
7. Manual brake model ( option pneumatic brake model )
8. Electric brand : DELIXI CHIT
9. Machine weight : 2.3T

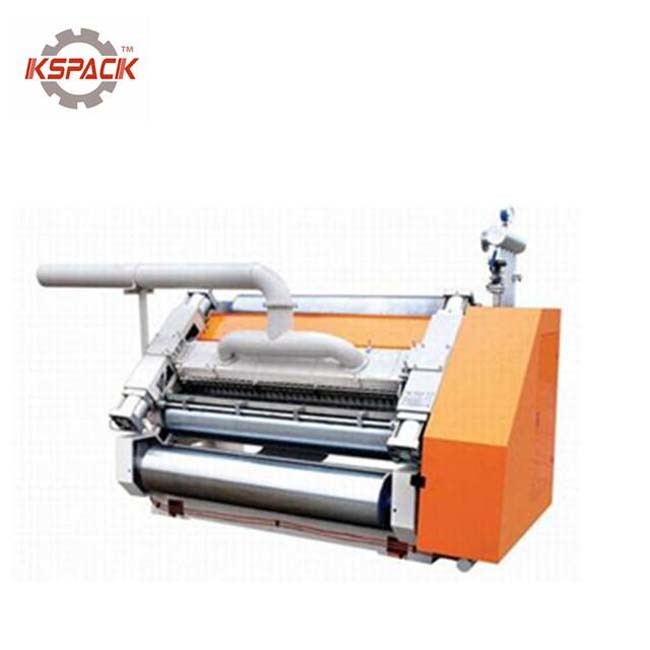

2. 2 Ply Single Facer
Characteristics
1. Cover vacuum suction.
2. Corrugating roll is made of high quality alloy steel48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. No gear transmission.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.
6. Manually regulate or electrically regulate the display device.
7. Lubricated by high temperature lubricate grease.
8. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.
9. Pressure roll is medium- frequency quenched and chrome-plated.
10. Width 1200mm~2000mm.
11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.
| Working Width | 1200mm |
| Heating method | electrical heating |
| Design speed | 80m/min |
| Economical speed | 45-60 m/min |
| Compress-air pressure | 0.4-0.9MPa |
| Flute type | Standard flute | UVE Flute |
| Standard spec. | E |
| For other type and model, we can produce as customer’s requirement. |
| Corrugated roll diameter (mm) | 280 |
| Wall Thickness (mm) | 130 |
